Router Configuration - TP Link

Step 1

Open the web browser and type the IP address of the device in the address bar (default is; you can check it on the bottom label of the device). Press Enter.

Step 2

Type the username and password in the login page, the default username and password are both admin. Click OK to log in to the device.

Step 3

Click Quick Setup on the left side. Click Next.

Step 4

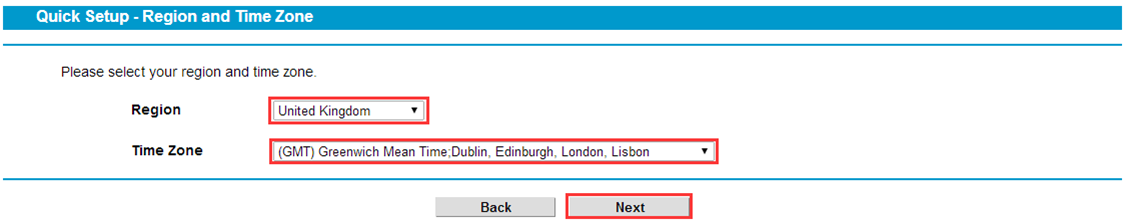

Select corresponding Region and Time Zone and click Next.

Step 5

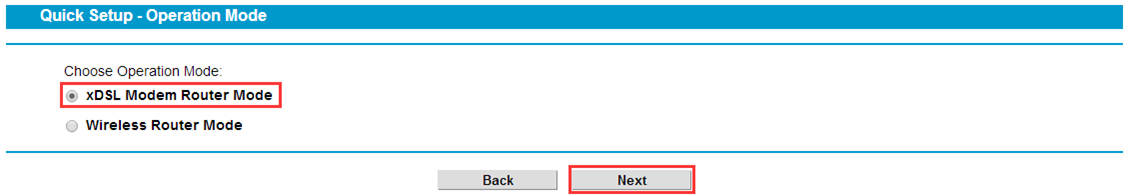

Select xDSL Modem Router Mode and click Next.

Step 6

Select your ISP in the dropdown ISP List You can select BT, and click Next, and skip Step 7 to Step 8.

If your ISP is not in the ISP List, select others, Click Next to Step 7.

Step 7

(This step only applies to selecting others in ISP List in step 6)

Select VDSL of L2 Interface Type, if you get a VID from your ISP, check Enable Vlan ID box, and input the VID. If you don’t have a VID, no need to check the Enable Vlan ID box and click Next to next step.

If you are not sure about the VID, please contact your ISP.

Step 8

Select the corresponding connection type as below. If you are not sure about your connection type, please contact your ISP. The following setting will be based on PPPoE connection as an example.

Step 9

Enter the Username and Password provided by the ISP.

Step 10

Setup Wireless 2.4GHz, create Wireless Network Name, Password and click Next.

Setup Wireless 5GHz, create Wireless Network Name, Password and click Next.

Step 11

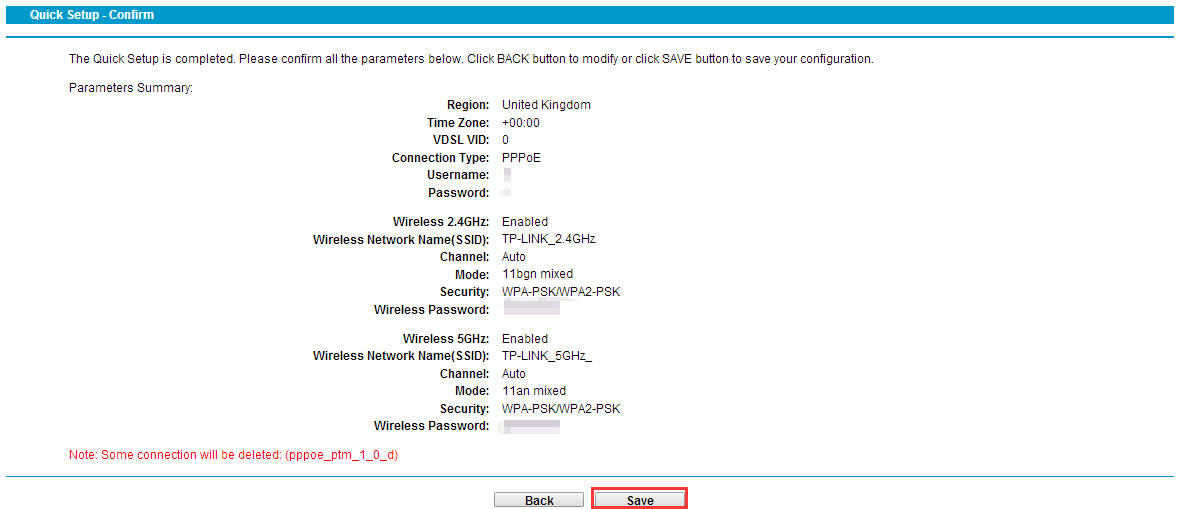

Confirm the summary information and click save.

If the VDSL connection has been successfully setup. You can see below information on the status page.
